AFS

Le broyage s’effectue par étapes via une fente de broyage effilée de l’intérieur vers l’extérieur
La denture des disques de broyage monoblocs est réglée en fonction de la tâche à accomplir afin d’obtenir des résultats optimaux tout en limitant au minimum l’entretien et l’usure
Finesse de broyage de quelques centaines de µm à 2 mm
Rendement élevé avec une faible consommation d’énergie spécifique
Mesure de la température et du niveau de remplissage de la chambre de broyage pour garantir une qualité de produit constamment élevée

Principle of operation

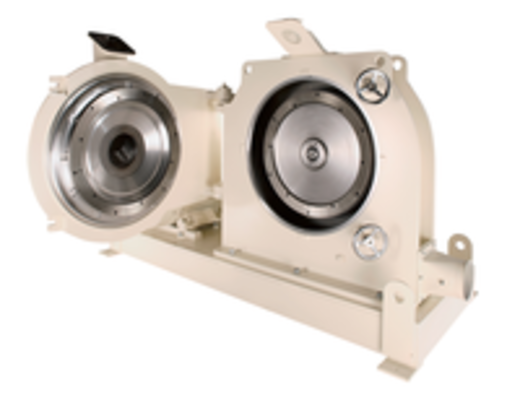

The feed material, usually between 4 and 8 mm in size, is fed into the grinding zone via the intake chute on the mill door. Size reduction takes place between the axially adjustable stator disc and the rotating grinding disc, which rotates at a high peripheral speed in accordance with the shearing and cutting principle. The actual grinding is effected in stages through a grinding gap which tapers from the inside to the outside. The finely ground product exits the grinding zone through an exactly defined gap.

Wherever an exact top-size limitation is required, the mill can be operated in circuit with a suitably designed screening machine. The oversize particles are routed back into the grinding zone. Most types of plastic can be finely ground at ambient temperature using this technology. If, on the other hand, the feed material is heat-sensitive, cryogenic mode is also possible. Contact our application engineers for advice and assistance. Our wide range of application know-how ensures optimum advice and the execution of sophisticated individual machines and complete systems.

Features

One-piece grinding discs with a variety of toothing geometries optimised with regard to wear and maintenance
High throughput capacity at low specific energy consumption
The grinding elements can be exchanged within a few minutes
Quick and easy access to the grinding chamber to permit cleaning and maintenance procedures
Reliable high-speed precision bearings
Compact and stable design, either of spheroidal graphite cast iron or in welded design
Largely automated mode of operation using controlled feed metering
Temperature and mill load measurement to maintain a constant level of high product quality

Applications

Alpine fine cutting mills AFS are employed for the fine grinding of soft to medium-hard plastics in the fineness range of several hundred µm to 2 mm. It is irrelevant whether the feed material is virgin material or product from a granulator. The end product achieved with the AFS mill is characterised by a smooth, cubic shape with extremely good flow properties and is thus optimum for further processing.
